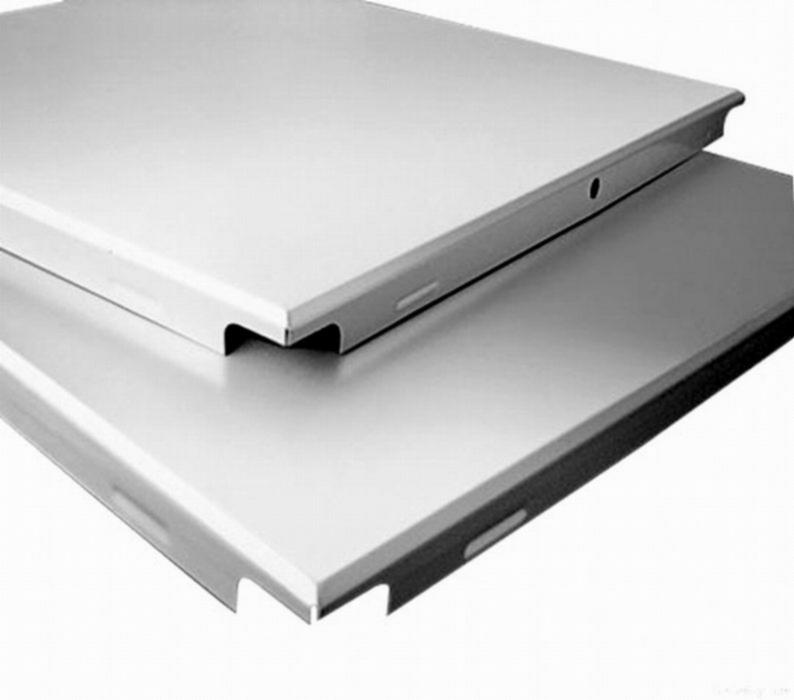

Aluminium Clip In Ceiling

Clip-In Ceiling Specification:

The GENESIS Clip-In Tile system has a beveled edge to form visually closed joints. The 4.2 mm bevel will emphasize the crispness of the tile ceiling design with fine joint lines.

GENESIS Clip-In Tiles are available in a wide variety of pre-defined rectangular module sizes that are commonly used in ceiling design.

Ceiling Type	Size(mm)	Side Height(mm)	Thickness(mm)	Edge Type
Clip-in Ceiling	300*300	20/25	0.5~1.0	Beveled /Square Edge
	300*600	20/25	0.6~1.0	Beveled / Square Edge
	300*1200	20/25	0.7~1.0	Beveled / Square Edge
	400*400	20	0.6~1.0	Beveled / Square Edge
	500*500	20	0.6~1.0	Beveled / Square Edge
	600*600	20/25/28	0.6~1.2	Beveled / Square Edge
	600*1200	20/25/28	0.7~1.2	Beveled / Square Edge

Product Name	Clip-in aluminum ceiling
Alloy	1100,3003,3005,3105
Size	300300,300600,3001200,400400,500500,600600, 600*1200mm
Thickness	0.5-1.2mm
Surface Treatment	Powder coating, roll coating, Film covered
Edge	Beveled /Square Edge
Shape	Square
Certificates	CE, SGS, ISO, etc
Packaging	Carton package
Delivery Time	15-20 days after receiving the deposit and confirm the details
Payment	T/T, L/C, Western Union

- Material(s): Aluminum, Galvanized Steel on request.
- Coating: Hi-qualified static powder coating utilized, special RAL colors on request.

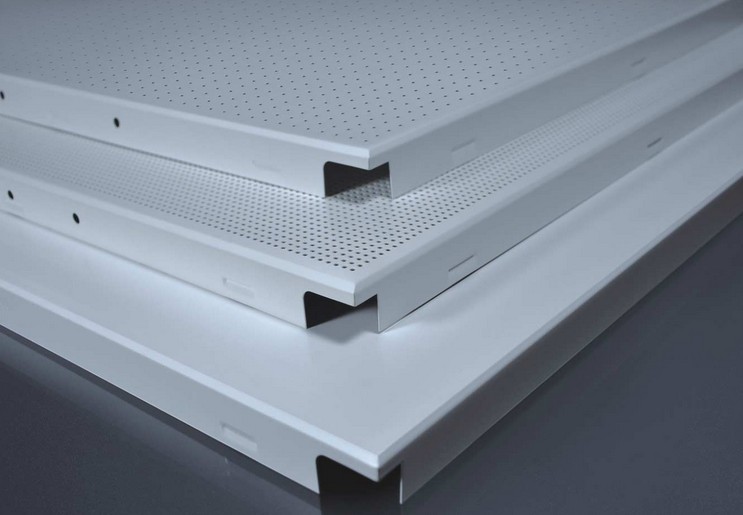

- Purpose: Fireproof, humidity absorbed, for perforated tiles with black felt, sound absorption and heat separation.
- Processing: Scissor and tooth saw available.
- Cleaning: Cleaning with water or cleanser.
